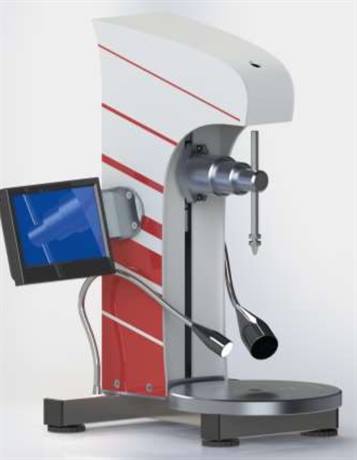

BM650/AUT AUTOMATIC PENETROMETER
Automatic penetrometer makes it possible to carry out with a high degree of accuracy a measurement of the texture of the material by penetration of the surface by a plunger equipped with a specific accessory (needle, cone, ...) subjected to constant effort for a determined period of time.
FEATURES
Measuring range of 80mm
Adjustable penetration time and pause according to codes
Fully automatic testing for conductive sample
Adaptable accessories Adjustable LED light intensity Digital zoom camera
7’’ HD display
Intuitive menu
Easy handling
Internal data saving
USB data export
MAIN CHARACTERISTICS
Dimensions : 330 x 380 x 580 mm
Mass : 9 kg
Main supply :24 Volts cc
Power consumption : 70 Watt
Acoustic emission : < 80dB (A)
Usage environnement : Tempered room (10 to 40°C)
Range of measurement : 80 mm
Measurement resolution :0.01 mm
Drop time resolution : 0.001 s
